38 PCS CLAMPING KITS
52172885~52172895
Description
Specification
INCH SIZE

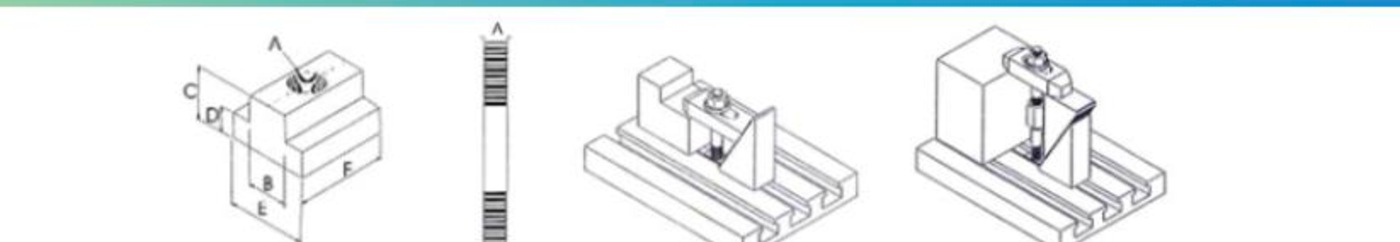

| ITEM NO. | STUD SIZE (A) | T-SLOT | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | PACKING |
|---|---|---|---|---|---|---|---|---|
| 52172885 | 3/8"-16 | 7/16" | 10.8 | 12 | 5.5 | 17.5 | 22 | Wooden tray |
| 52172886 | 3/8"-16 | 1/2" | 11.5 | 12 | 6.8 | 22 | 22 | Wooden tray |
| 52172887 | 3/8"-16 | 9/16" | 13.8 | 16 | 8 | 22 | 28 | Wooden tray |
| 52172888 | 1/2"-12 | 9/16" | 13.8 | 16 | 8 | 22 | 28 | Wooden tray |
| 52172889 | 1/2"-12 | 5/8" | 15.5 | 16 | 8 | 25 | 28 | Wooden tray |
| 52172890 | 1/2"-13UNC | 9/16" | 13.8 | 16 | 8 | 22 | 28 | Wooden tray |
| 52172891 | 1/2"-13UNC | 5/8" | 15.5 | 16 | 8 | 25 | 28 | Wooden tray |
| 52172892 | 5/8"-11 | 11/16" | 17.5 | 19 | 11 | 28 | 31 | Wooden tray |
| 52172893 | 5/8"-11 | 3/4" | 18.6 | 19 | 12 | 31.8 | 31 | Wooden tray |
| 52172894 | 3/4"-10 | 13/16" | 20.2 | 25 | 14 | 32 | 38 | Wooden tray |
| 52172895 | 3/4"-10 | 7/8" | 21.7 | 28 | 14 | 35 | 38 | Wooden tray |
