MODULAR ANGLE HEADS - ULTRA SLIM
52172534~52172539
Description
Specification
| Material | Alloy Steel |
| R.P.M. | Max. 4000 RPM |
| Torque | C1 : Max. 6 Nm D1 : Max. 12 Nm |
| Drilling | Max. 6 mm |
| Tapping | C1 : Max. M4 D1 : Max. M6 |
| Gear Ratio | 1 : 1 |
| Spindle Type | BT, SK(ISO), CAT |
| Standard Accessory | T Handle Hex. Wrench |

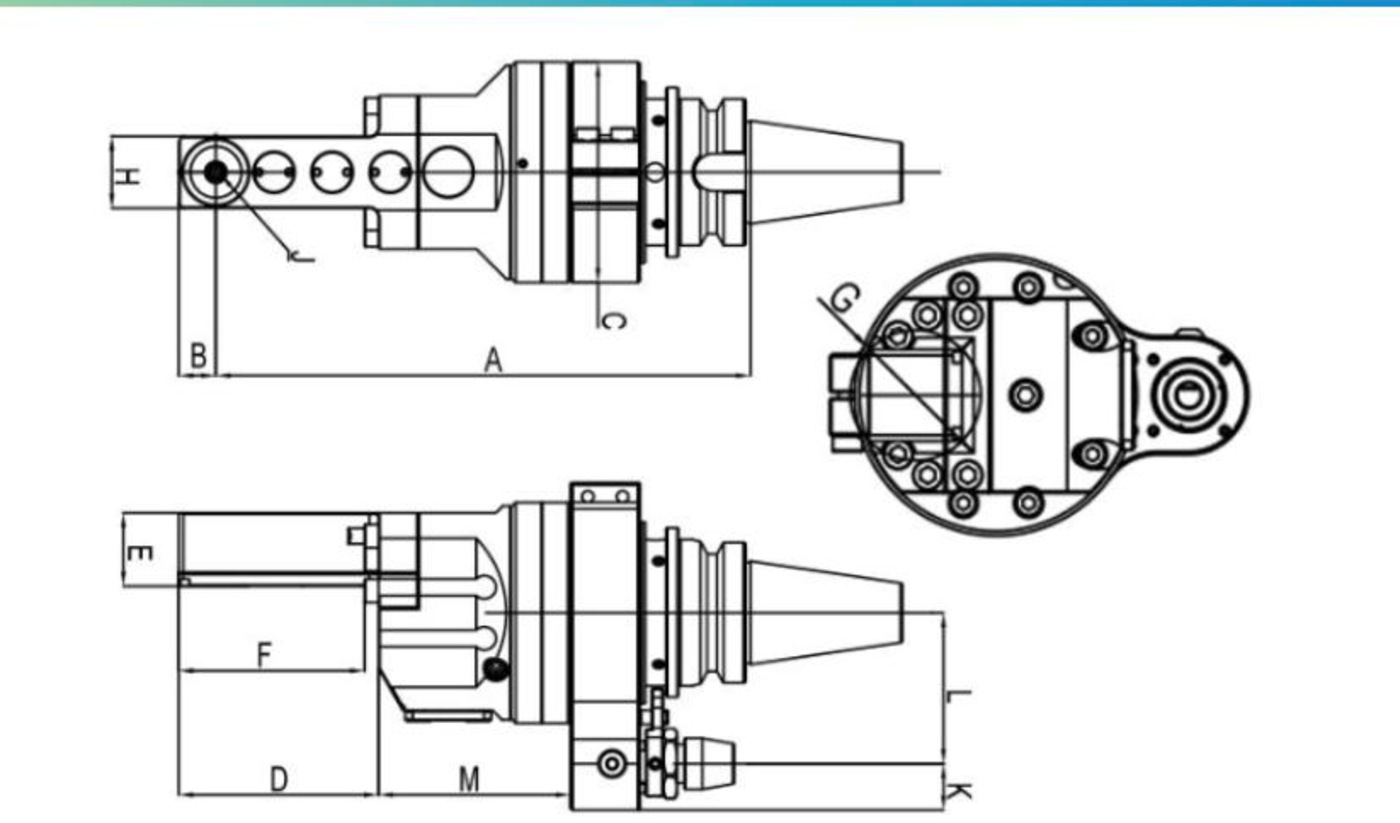

UNIT: mm
| ITEM NO. | MODEL | A | B | C | D | E | F | G | H | J | K | L | M | N.W (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52172534 | AHL-BT40-C1.65 | 230 | 16 | 95 | 86 | 31.5 | 80 | 44 | 31 | 2~6 (ADC6) | 20 | 65 | 82.5 | 6.6 |
| 52172535 | AHL-CAT40-C1.65 | 230 | 16 | 95 | 86 | 31.5 | 80 | 44 | 31 | 2~6 (ADC6) | 20 | 65 | 82.5 | 6.6 |
| 52172536 | AHL-SK40-C1.65 | 230 | 16 | 95 | 86 | 31.5 | 80 | 44 | 31 | 2~6 (ADC6) | 20 | 65 | 82.5 | 6.6 |
| 52172537 | AHL-BT40-D1.65 | 250 | 18 | 95 | 108 | 40 | 102 | 55 | 38 | 2~6 (BDC6) | 20 | 65 | 82.5 | 6.9 |
| 52172538 | AHL-CAT40-D1.65 | 250 | 18 | 95 | 108 | 40 | 102 | 55 | 38 | 2~6 (BDC6) | 20 | 65 | 82.5 | 6.9 |
| 52172539 | AHL-SK40-D1.65 | 250 | 18 | 95 | 108 | 40 | 102 | 55 | 38 | 2~6 (BDC6) | 20 | 65 | 82.5 | 6.9 |
