HEAVY DUTY ANGLE HEADS (VTC)
52172507~52172509
Description
Specification
| Run-out | 0.002 mm |
| Material | Alloy Steel |
| R.P.M. | Max. 4000 RPM |
| Torque | Max. 60 Nm |
| Gear Ratio | 1 : 1 |
| Spindle Type | BT, SK(ISO), CAT |
| Standard Accessory | Open End Wrench L Type Wrench, |
| Output Rotation | Reverse to Input Rotation |

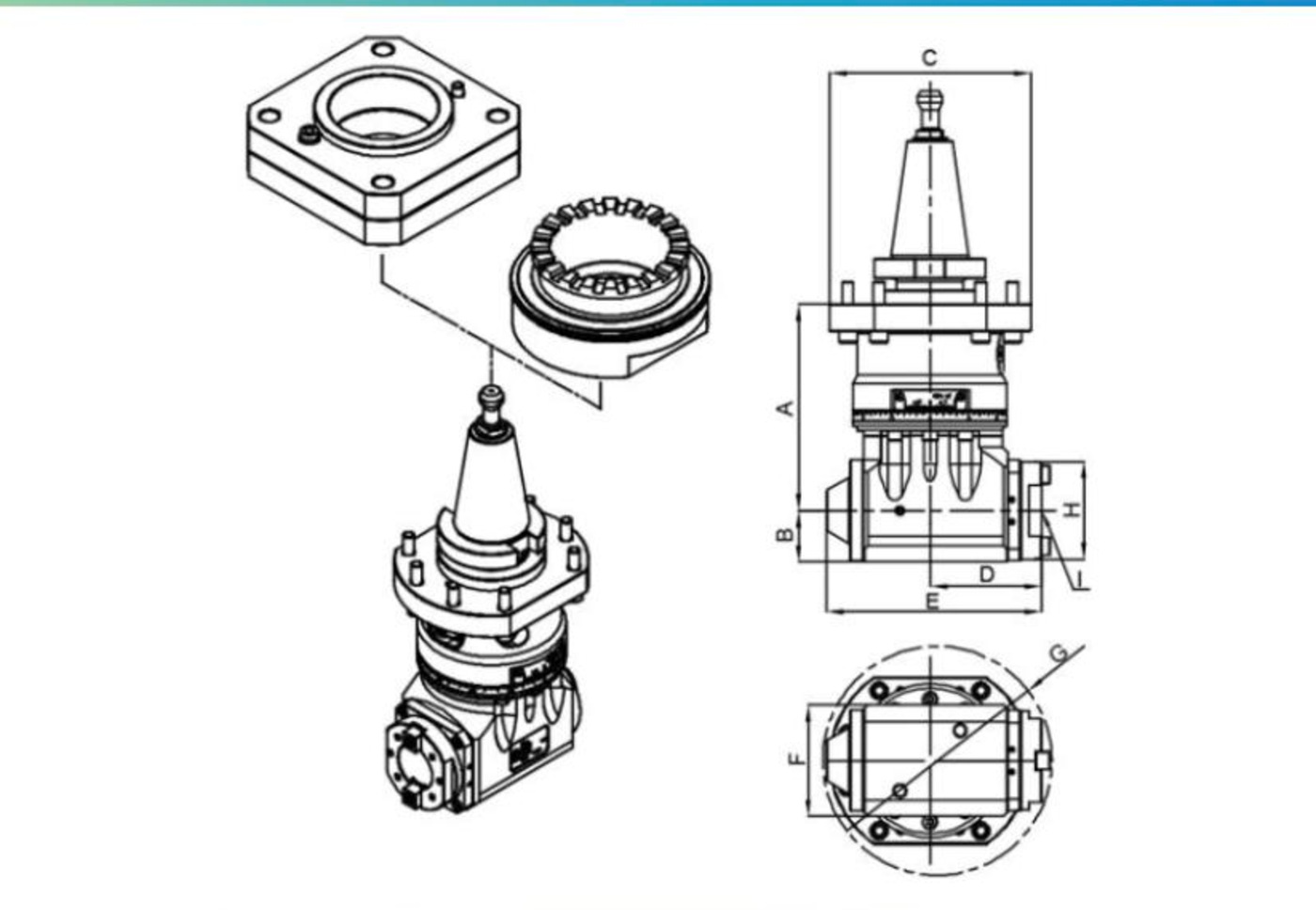

UNIT: mm
| ITEM NO. | MODEL | A | B | C | D | E | F | G | H | I | N.W (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 52172507 | AHK-BT50-C1 | 185 | 46 | 180 | 100 | 193 | 100 | 205 | 88 | BT40 | 25.7 |
| 52172508 | AHK-SK50-C1 | 185 | 46 | 180 | 100 | 193 | 100 | 205 | 88 | BT40 | 25.7 |
| 52172509 | AHK-CAT50-C1 | 185 | 46 | 180 | 100 | 193 | 100 | 205 | 88 | BT40 | 25.7 |
