MULTI-BLOCK ANGLE HEADS - HSK (INT.)
52172504~52172506
Description
Specification
| Run-out | 0.002 mm |
| Material | Alloy Steel |
| R.P.M. | Max. 4000 RPM |
| Torque | Max. 60 Nm |
| Gear Ratio | 1 : 1 |
| Spindle Type | BT, SK(ISO), CAT |
| Standard Accessory | Open End Wrench L Type Wrench, |
| Output Rotation | Reverse to Input Rotation |

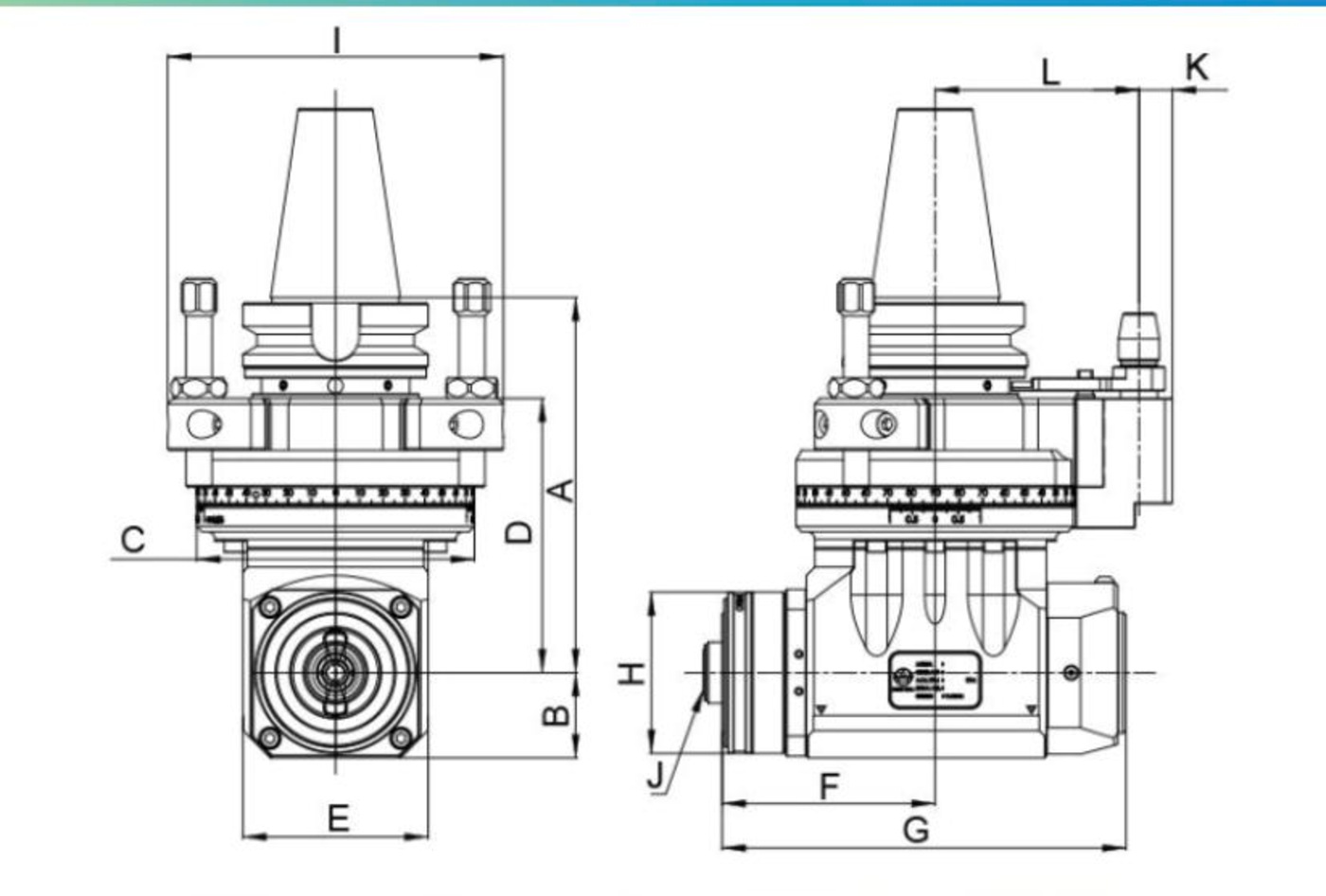

UNIT: mm
| ITEM NO. | MODEL | A | B | C | D | E | F | G | H | I | J | K | L | N.W (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52172504 | AHK-BT50-B2-I | 202.5 | 46 | 150 | 148 | 100 | 115 | 218 | 87 | 239 | HSK63 | 18 | 110 | 23.4 |
| 52172505 | AHK-SK50-B2-I | 202.5 | 46 | 150 | 148 | 100 | 115 | 218 | 87 | 239 | HSK63 | 18 | 110 | 23.4 |
| 52172506 | AHK-CAT50-B2-I | 202.5 | 46 | 150 | 148 | 100 | 115 | 218 | 87 | 239 | HSK63 | 18 | 110 | 23.4 |
*INT. : INTERNAL COOLANT
