HEAVY DUTY ANGLE HEADS

HEAVY DUTY ANGLE HEADS

HEAVY DUTY ANGLE HEADS

52172486~52172491

Description

Specification


Run-out 0.002 mm
Material Ductile Cast Iron
R.P.M. Max. 2500 RPM (Ground Gear : 4000 RPM)
Torque Max. 100 Nm
Gear Ratio 1 : 1
Spindle Type BT, SK(ISO), CAT
Standard Accessory Open End Wrench, L Type Wrench
Output Rotation Reverse to Input Rotation

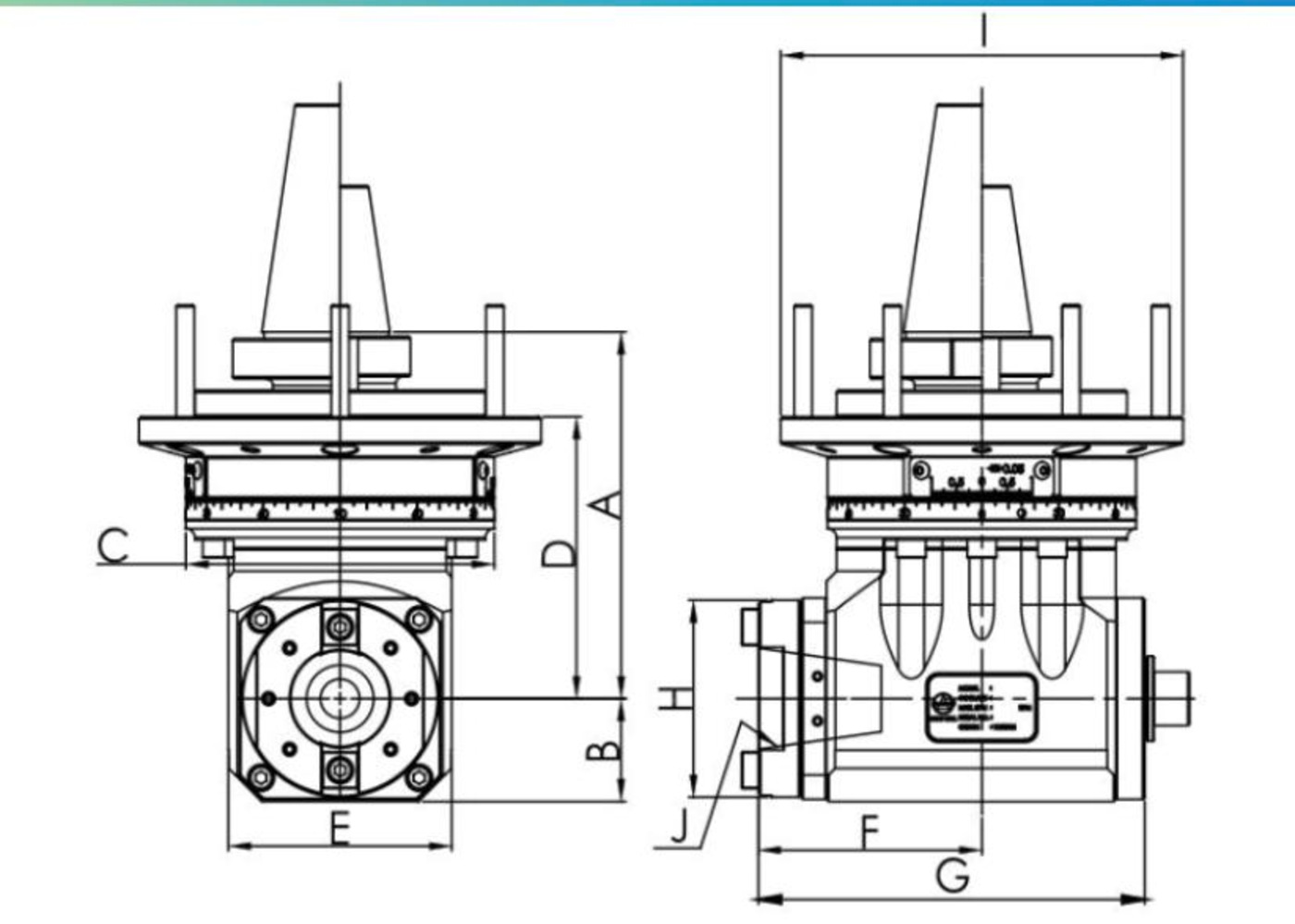

UNIT: mm

ITEM NO. MODEL A B C D E F G H J N.W (kgs)
52172486 AHK-BT40-A1G 164 46 138 126 100 100 173.5 89 180 BT40 17.3
52172487 AHK-BT50-A1G 164 46 138 126 100 100 173.5 89 180 BT40 20
52172488 AHK-SK40-A1G 164 46 138 126 100 100 193 88 180 BT40 17.3
52172489 AHK-SK50-A1G 164 46 138 126 100 100 193 88 180 BT40 20
52172490 AHK-CAT40-A1G 164 46 138 126 100 100 193 88 180 BT40 17.3
52172491 AHK-CAT50-A1G 164 46 138 126 100 100 193 88 180 BT40 20
