MODULAR TYPE ANGLE HEADS-AHD (A1-A3 TYPE)

MODULAR TYPE ANGLE HEADS-AHD (A1-A3 TYPE)

MODULAR TYPE ANGLE HEADS-AHD (A1-A3 TYPE)

52171709~52171725

Description

Specification

UNIT: mm

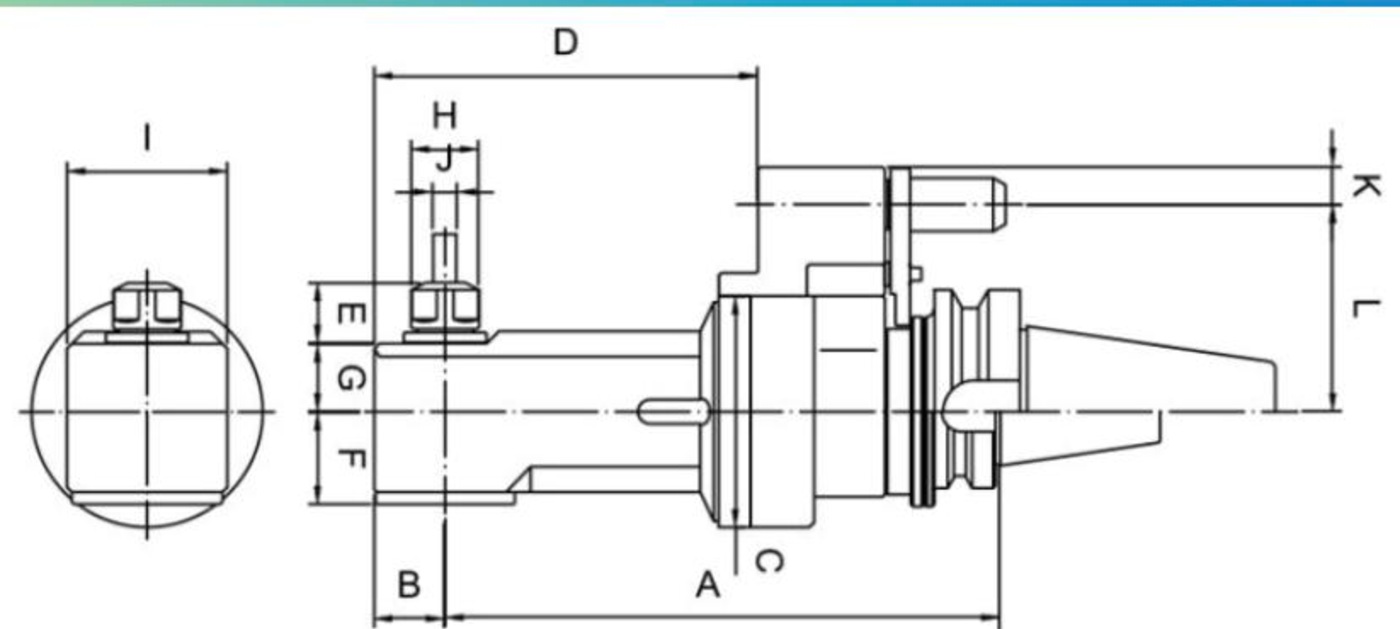

ITEM NO. MODEL A B C D E F G H I J K L N.W. (kgs)
52171709 AHD-BT40-A1 227 29 95 156 29.5 38 28 34 66 1~13 (ER20) 15.5 65 / 80 / 85 8.4
52171710 AHD-BT50-A1 238 29 95 156 29.5 38 28 34 66 1~13 (ER20) 15.5 80 / 85 / 110 11
52171711 AHD-SK40-A1 227 29 95 156 29.5 38 28 34 66 1~13 (ER20) 15.5 65 / 80 / 85 8.1
52171712 AHD-SK50-A1 238 29 95 156 29.5 38 28 34 66 1~13 (ER20) 15.5 80 / 85 / 110 10.8
52171713 AHD-CAT40-A1 227 29 95 156 29.5 38 28 34 66 1~13 (ER20) 15.5 65 / 80 / 85 8.1
52171714 AHD-CAT50-A1 238 29 95 156 29.5 38 28 34 66 1~13 (ER20) 15.5 80 / 85 / 110 10.8
52171715 AHD-HSK63-A1 248 29 95 156 29.5 38 28 34 66 1~13 (ER20) 15.5 65 / 80 / 85 8.4
52171716 AHD-HSK100-A1 244 29 95 156 29.5 38 28 34 66 1~13 (ER20) 15.5 80 / 85 / 110 11
52171718 AHD-BT40-A3 227 29 95 156 42 38 28 34 66 2~16 (ER25) 15.5 65 / 80 / 85 8.4
52171719 AHD-BT50-A3 238 29 95 156 42 38 28 34 66 2~16 (ER25) 15.5 80 / 85 / 110 11
52171720 AHD-SK40-A3 227 29 95 156 42 38 28 34 66 2~16 (ER25) 15.5 65 / 80 / 85 8.1
52171721 AHD-SK50-A3 238 29 95 156 42 38 28 34 66 2~16 (ER25) 15.5 80 / 85 / 110 10.8
52171722 AHD-CAT40-A3 227 29 95 156 42 38 28 34 66 2~16 (ER25) 15.5 65 / 80 / 85 8.1
52171723 AHD-CAT50-A3 238 29 95 156 42 38 28 34 66 2~16 (ER25) 15.5 80 / 85 / 110 10.8
52171724 AHD-HSK63-A3 248 29 95 156 42 38 28 34 66 2~16 (ER25) 15.5 65 / 80 / 85 8.4
52171725 AHD-HSK100-A3 244 29 95 156 42 38 28 34 66 2~16 (ER25) 15.5 80 / 85 / 110 11
