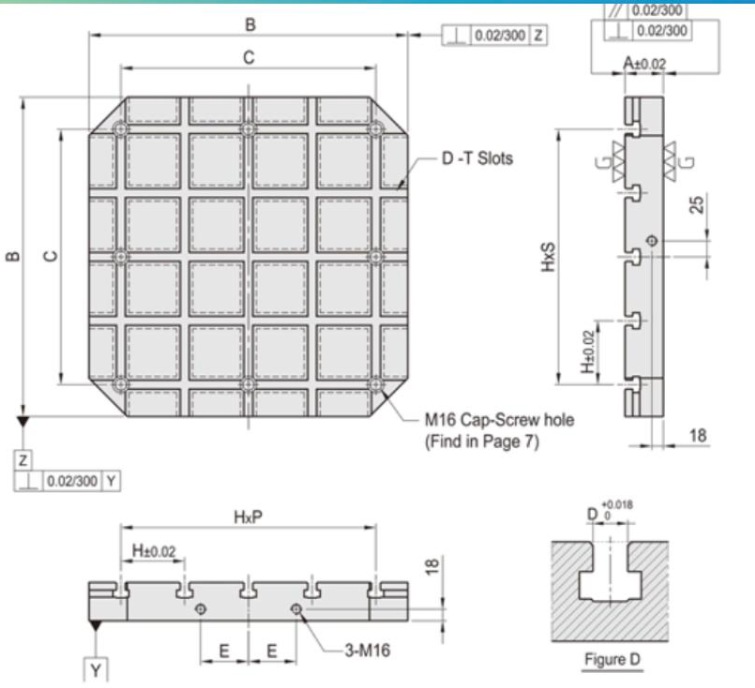

MACHINE BASE PLATE
52173442~52173449
Description
Specification
UNIT: mm
| ITEM NO. | A | B | C | D | E | H | P | S | Mounting Holes | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| 52173442 | 60 | 400 | 320 | 14 | 55 | 80 | 4 | 4 | 4 | 56 |
| 52173443 | 500 | 400 | 75 | 100 | 8 | 90 | ||||
| 52173444 | 630 | 500 | 100 | 125 | 8 | 150 | ||||
| 52173445 | 800 | 640 | 135 | 160 | 8 | 230 | ||||
| 52173446 | 75 | 400 | 320 | 18 | 55 | 80 | 4 | 68 | ||
| 52173447 | 500 | 400 | 75 | 100 | 8 | 108 | ||||
| 52173448 | 630 | 500 | 100 | 125 | 8 | 180 | ||||
| 52173449 | 800 | 640 | 135 | 160 | 8 | 295 |
