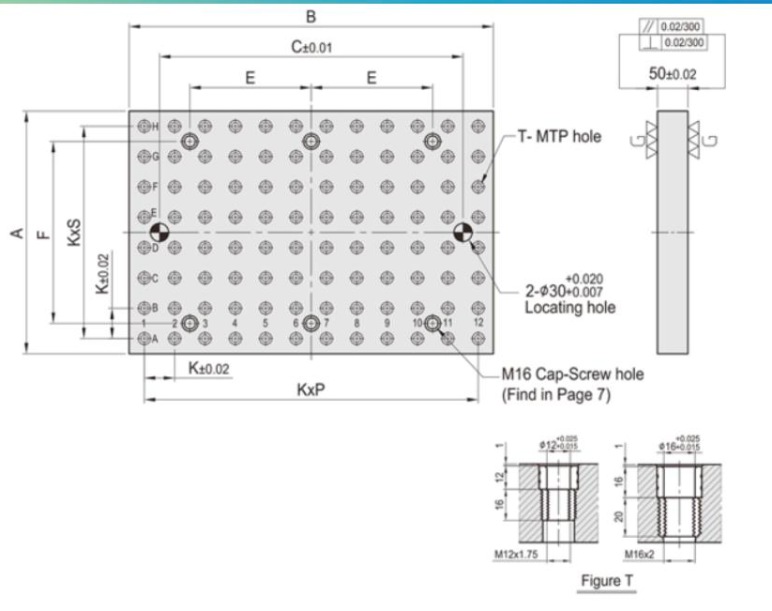

MACHINE BASE PLATE
52173414~52173427
Description
Specification
SPECIAL SIZES BY REQUEST
UNIT: mm
| ITEM NO. | A | B | T | K | P | S | MTP | kg |
|---|---|---|---|---|---|---|---|---|
| 52173414 | 400 | 600 | Ø12 M12 |
50 | 11 | 7 | 96 | 90 |
| 52173415 | 500 | 600 | 11 | 9 | 120 | 112 | ||
| 52173416 | 600 | 600 | 11 | 11 | 144 | 134 | ||
| 52173417 | 400 | 800 | 15 | 7 | 128 | 109 | ||
| 52173418 | 450 | 900 | 17 | 8 | 158 | 138 | ||
| 52173419 | 500 | 1000 | 19 | 9 | 200 | 165 | ||
| 52173420 | 600 | 1200 | 23 | 11 | 288 | 244 | ||
| 52173421 | 400 | 600 | Ø16 M16 |
11 | 7 | 96 | 89 | |
| 52173422 | 500 | 600 | 11 | 9 | 120 | 108 | ||
| 52173423 | 600 | 600 | 11 | 11 | 144 | 120 | ||
| 52173424 | 400 | 800 | 15 | 7 | 128 | 108 | ||
| 52173425 | 450 | 900 | 17 | 8 | 158 | 134 | ||
| 52173426 | 500 | 1000 | 19 | 9 | 200 | 164 | ||
| 52173427 | 600 | 1200 | 23 | 11 | 288 | 240 |
