FMS COMPACT MACHINE VISES (VCV)
52171484~52171491
Description
Specification

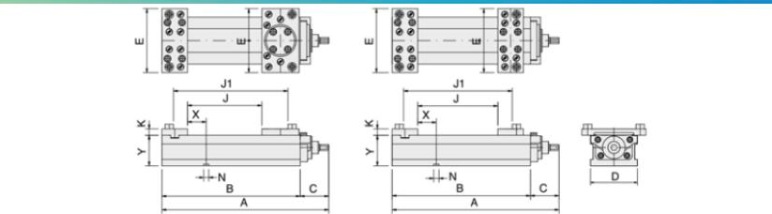

UNIT: mm
| ITEM NO. | MODEL | A | B | C | D | E | J | J1 | K | N | X | Y | N.W. | G.W. | SHIPMENT SIZE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52171484 | VCV-100V-FB | 398 | 300 | 98 | 101 | 160 | 0-100 | 0-220 | 17 | 18 | 51 | 85 | 17.5 kgs | 19.5 kgs | 590 × 175 × 185 |
| 52171485 | VCV-130V-FB | 508 | 410 | 98 | 131 | 190 | 0-180 | 0-320 | 17 | 18 | 60 | 95 | 31.5 kgs | 33.5 kgs | 665 × 190 × 125 |
| 52171486 | VCV-160V-FB | 573 | 475 | 98 | 161 | 220 | 0-220 | 0-380 | 22 | 18 | 64 | 105 | 49.5 kgs | 52.5 kgs | 760 × 190 × 215 |
| 52171487 | VCV-200V-FB | 653 | 555 | 98 | 201 | 260 | 0-250 | 0-460 | 22 | 18 | 90 | 110 | 77.0 kgs | 80.0 kgs | 820 × 230 × 220 |
| 52171488 | VCV-100V-FM | 398 | 300 | 98 | 101 | 160 | 0-150 | 0-220 | 17 | 18 | 51 | 85 | 16.5 kgs | 18.5 kgs | 590 × 175 × 185 |
| 52171489 | VCV-130V-FM | 508 | 410 | 98 | 131 | 190 | 0-210 | 0-320 | 17 | 18 | 60 | 95 | 30.5 kgs | 32.5 kgs | 665 × 190 × 125 |
| 52171490 | VCV-160V-FM | 573 | 475 | 98 | 161 | 220 | 0-280 | 0-380 | 22 | 18 | 64 | 105 | 47.0 kgs | 50.0 kgs | 760 × 190 × 215 |
| 52171491 | VCV-200V-FM | 653 | 555 | 98 | 201 | 260 | 0-320 | 0-460 | 22 | 18 | 90 | 110 | 73.5 kgs | 76.5 kgs | 820 × 230 × 220 |
