DIN6499 - ER WRENCHES
52100864~52100868, 52101404~52101411, 52101409-1, 52101409-2
Description

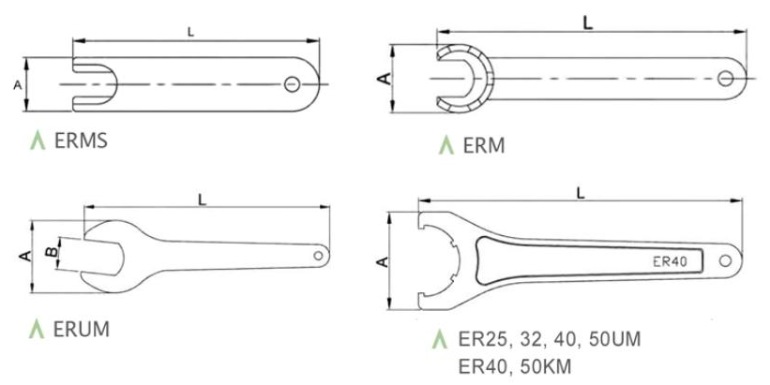

Specification
UNIT: mm
| ITEM NO. | TYPE | A | B | L | WEIGHT (kgs) |
|---|---|---|---|---|---|
| 52101404 | ER11UM | 35 | 17 | 130 | 0.07 |
| 52100866 | ER16UM | 44 | 25 | 140 | 0.08 |
| 52100868 | ER20UM | 53 | 30 | 170 | 0.1 |
| 52101405 | ER25UM | 65 | - | 210 | 0.2 |
| 52101406 | ER32UM | 75 | - | 250 | 0.4 |
| 52101407 | ER40UM/KM | 90 | - | 290 | 0.5 |
| 52101408 | ER50UM/KM | 110 | - | 350 | 0.9 |
| 52101409 | ER11MS | 22 | - | 100 | 0.07 |
| 52101409-1 | ER16MS | 32 | - | 120 | 0.12 |
| 52101409-2 | ER20MS | 38 | - | 150 | 0.15 |
| 52101410 | ER8M | 13 | - | 75 | 0.04 |
| 52100864 | ER11M | 17 | - | 95 | 0.05 |
| 52100865 | ER16M | 22.5 | - | 118 | 0.06 |
| 52100867 | ER20M | 28 | - | 130 | 0.08 |
| 52101411 | ER25M | 36.5 | - | 135 | 0.1 |
