ST / DS STRAIGHT SHANK SYSTEM
52173385~52173388
Description
Specification

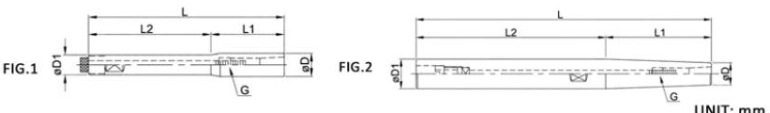

UNIT: mm
| ITEM NO. | TYPE | CLAMPING RANGE |
øD | øD1 | L | L1 | L2 | WRENCH | BACK SCREW |
FIG |
|---|---|---|---|---|---|---|---|---|---|---|
| 52173385 | ST12-DS06-120 | 2~6 | 12 | 14 | 120 | 45 | 75 | 4mm | M5 | 1 |
| 52173386 | ST16-DS06-150 | 16 | 14 | 150 | 40 | 110 | 2 | |||
| 52173387 | ST20-DS06-200 | 20 | 15 | 200 | 70 | 130 | 2 | |||
| 52173388 | ST25-DS06-250 | 25 | 15 | 250 | 115 | 135 | 2 |
