ST / ER STRAIGHT SHANK COLLET CHUCK WITH DOUBLE HEAD SPINDLE WITH FLAT
52173314~52173317
Description
Specification
UNIT: mm

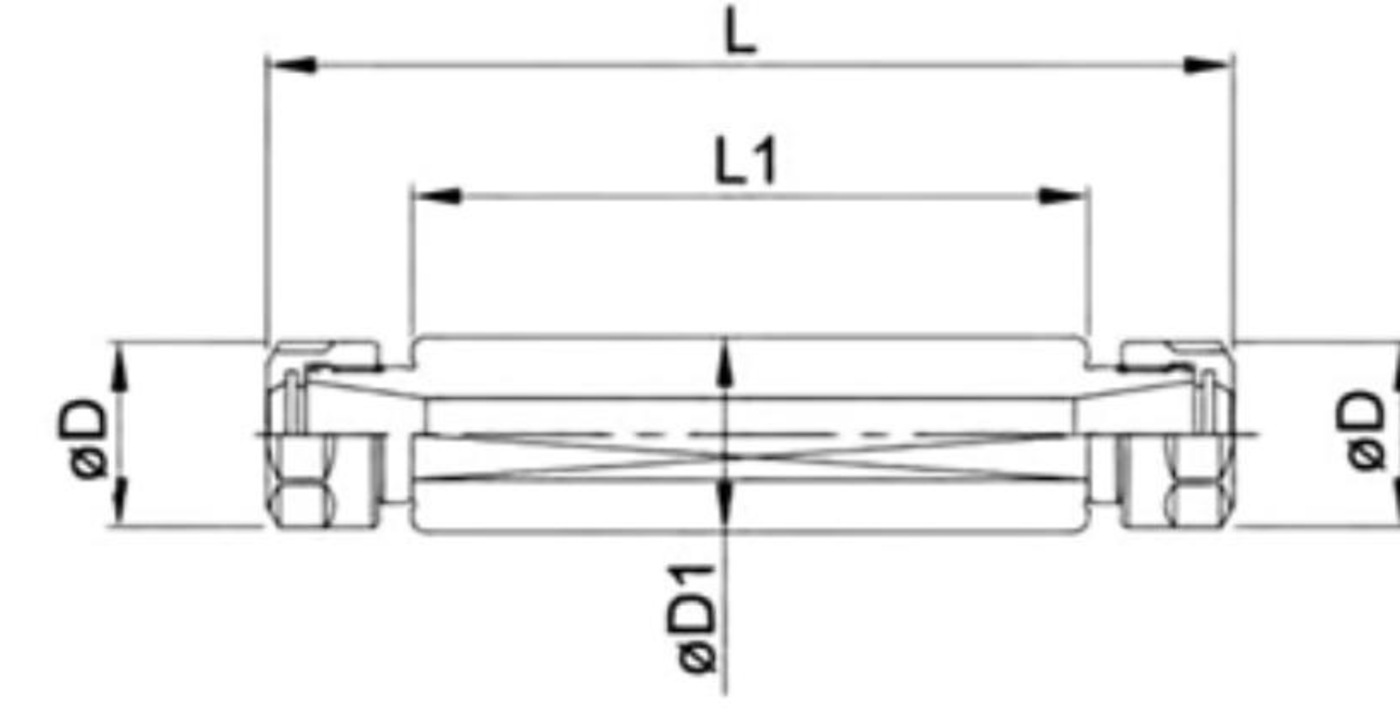

| ITEM NO. | TYPE | φD | φD1 | L | L1 | WEIGHT (kgs) |
|---|---|---|---|---|---|---|
| 52173314 | ST20-ER11UM2-50 | 19 | 20 | 80 | 50 | 0.15 |
| 52173315 | ST20-ER11UM2-70 | 19 | 20 | 100 | 70 | 0.19 |
| 52173316 | ST25-ER16UM2-80 | 28 | 25 | 124 | 80 | 0.35 |
| 52173317 | ST25-ER20UM2-80 | 34 | 25 | 134 | 80 | 0.38 |
