NT / ER COLLET CHUCK SYSTEM
52100547~52100555, 52100557~52100561, 52101306~52101307
Description
Specification

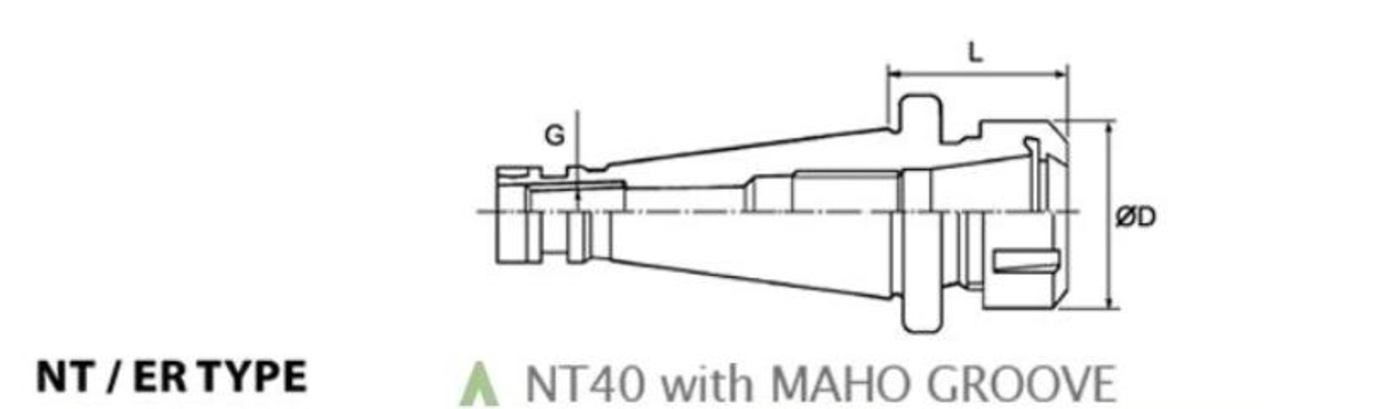

NT / ER TYPE
UNIT: mm
| ITEM NO. | TYPE | L | øD | COLLET | WEIGHT (kgs) | DRAWBAR G |
|---|---|---|---|---|---|---|
| 52100557 | NT30-ER16-76 | 76 | 28 | ER16 | 0.6 | 1. M12 x 1.75P 2. 1/2"-12 3. 1/2"-13UNC |
| 52101306 | NT30-ER20-76 | 76 | 34 | ER20 | 0.6 | |
| 52100547 | NT30-ER25-55 | 55 | 42 | ER25 | 0.55 | |
| 52100548 | NT30-ER32-55 | 55 | 50 | ER32 | 0.6 | |
| 52100549 | NT30-ER40-70 | 70 | 63 | ER40 | 1 | |
| 52100558 | NT40-ER16-76 | 76 | 28 | ER16 | 1 | 1. M16 x 2.0P 2. 5/8" x 11 |
| 52100559 | NT40-ER16-100 | 100 | 28 | ER16 | 1.2 | |
| 52100560 | NT40-ER20-76 | 76 | 34 | ER20 | 1 | |
| 52100561 | NT40-ER20-100 | 100 | 34 | ER20 | 1.2 | |
| 52100550 | NT40-ER25-50 | 50 | 42 | ER25 | 1 | |
| 52100551 | NT40-ER32-50 | 50 | 50 | ER32 | 1 | |
| 52100552 | NT40-ER40-60 | 60 | 63 | ER40 | 1.3 | |
| 52100553 | NT40-ER50-80 | 80 | 78 | ER50 | 1.9 | |
| 52100554 | NT50-ER32-60 | 60 | 50 | ER32 | 2.6 | 1. M24 x 3.0P 2. 1"-8 |
| 52100555 | NT50-ER40-65 | 65 | 63 | ER40 | 3.2 | |
| 52101307 | NT50-ER50-65 | 65 | 78 | ER50 | 3.5 |
