BAR FEEDERS
51101124, 51101125, 51101126, 51101127, 51101128, 51101129, 51101130, 51101131
Description
Specification
UNIT: mm
| CHANNEL | BAR DIAMETER | WORKING MODE | |
|---|---|---|---|
| MIN | MAX | ||
| 17 | 5 | 16 | Finger chuck with remnant extraction or "push type" without remnant extraction. |
| 21 | 5 | 20 | |
| 23 | 5 | 22 | |
| 28 | 5 | 27 | |
| 33 | 5 | 32 | |
| 36 | 5 | 35 | |
| 38 | 10 | 37 | |
| 43 | 10 | 42 | |
| 46 | 10 | 45 | |
UNIT: mm
| ITEM NO. | 51101124(S1) 51101125(S2) |
51101126(S1) 51101127(S2) |
51101128(S1) 51101129(S2) |
51101130(S1) 51101131(S2) |
|---|---|---|---|---|
| Bar diameter | ø5 - ø51 | ø5 - ø51 | ø5 - ø51 | ø5 - ø51 |
| Bar length | 25 / 2500 | 32 / 3200 | 37 / 3700 | 44 / 4400 |
| Magazine capacity | ø10 x 28pcs | ø10 x 28pcs | ø10 x 28pcs | ø10 x 28pcs |
| Spindle height | 850~1300 | 850~1300 | 850~1300 | 850~1300 |
| Weight | 800 kgs | 900 kgs | 1000 kgs | 1100 kgs |
| Power supply | 220V/ 380V, 10A, 3p, 50/ 60HZ | |||
| Air supply | 6 kgs/cm2 | 6 kgs/cm2 | 6 kgs/cm2 | 6 kgs/cm2 |

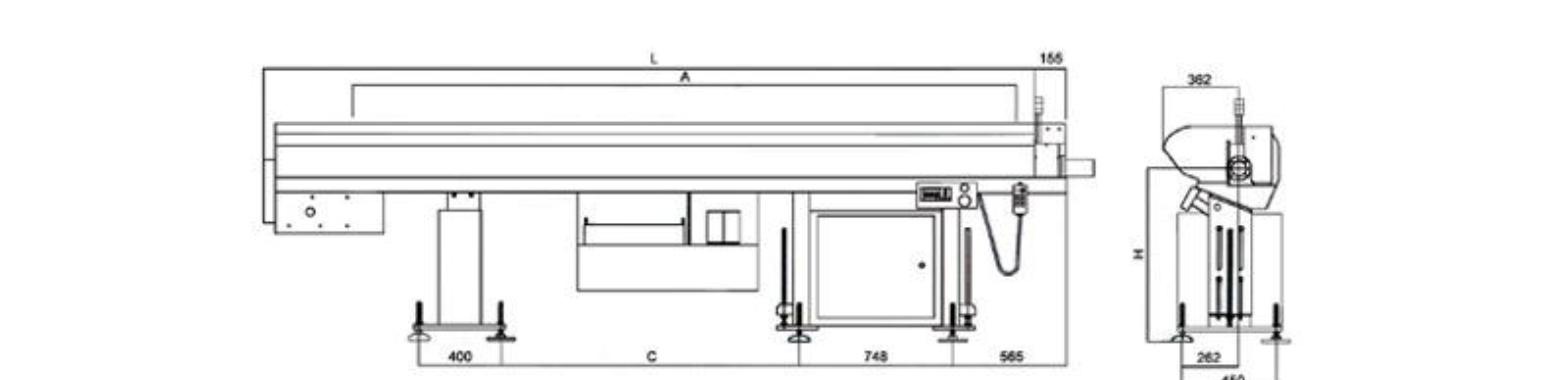

| L | - | 3750 | 4290 | 4950 |
| A | - | 3200 | 3740 | 4400 |
| C | - | 1451 | 1991 | 2651 |
| H | - | 850-1300 | ||
