BAR FEEDERS
51101110, 51101111
Description
Specification
UNIT: mm
| GUIDE CHANNEL SIZE | BAR SIZE | PUSHER DIAMETER |
|---|---|---|
| 13 | 4 to 12 | 12 |
| 11 | 4 to 10 | 10 |
| 8 | 2 to 7 | 7 |
UNIT: mm
| ITEM NO. | 51101110 | 51101111 |
|---|---|---|
| Bar diameter | ø2 - ø12 | |
| Type | 2.5 / 3.2 / 3.7 meter | |

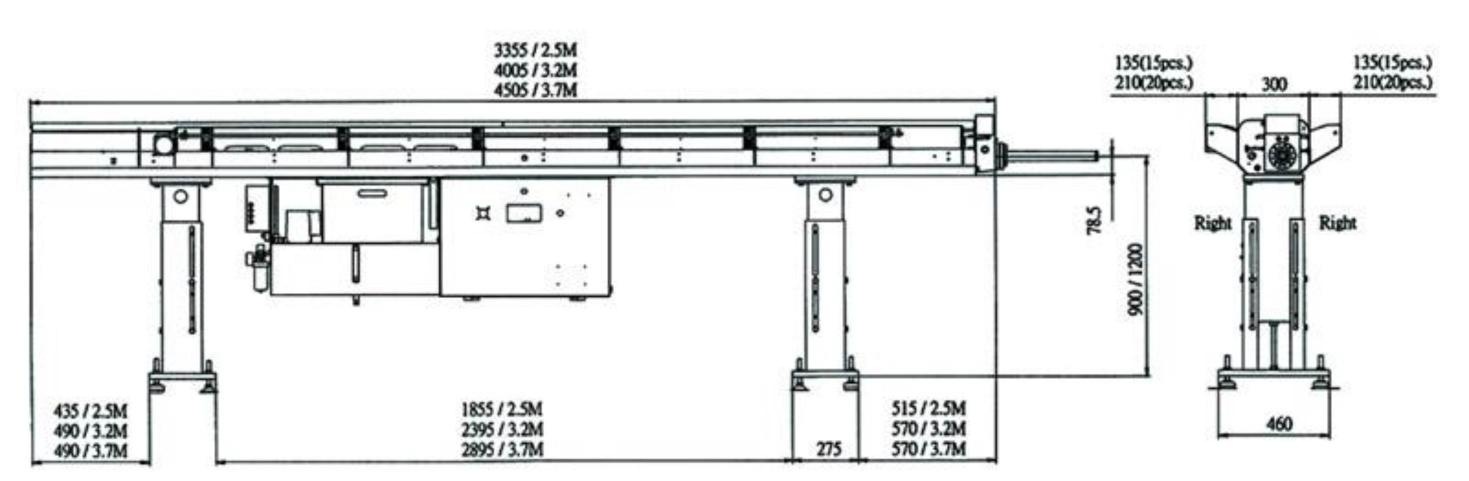

| Overall length | 3355 / 4005 / 4505 | |
| Width of machine | 515 (15pcs) / 590 (20pcs) | |
| Max. bar length | 2600 / 3200 / 3800 | |
| Bar loading capacity | 20pcs / 15pcs | |
| Weight | 390-440 kgs | |
| Air supply | 6 kg/m2 | |
| Power source | 3 x 200V / 3 x 380V , 50/ 60HZ | |
| Drive | Servo drive | |
