BAR FEEDERS
51101108-1, 51101109-1
Description
Specification

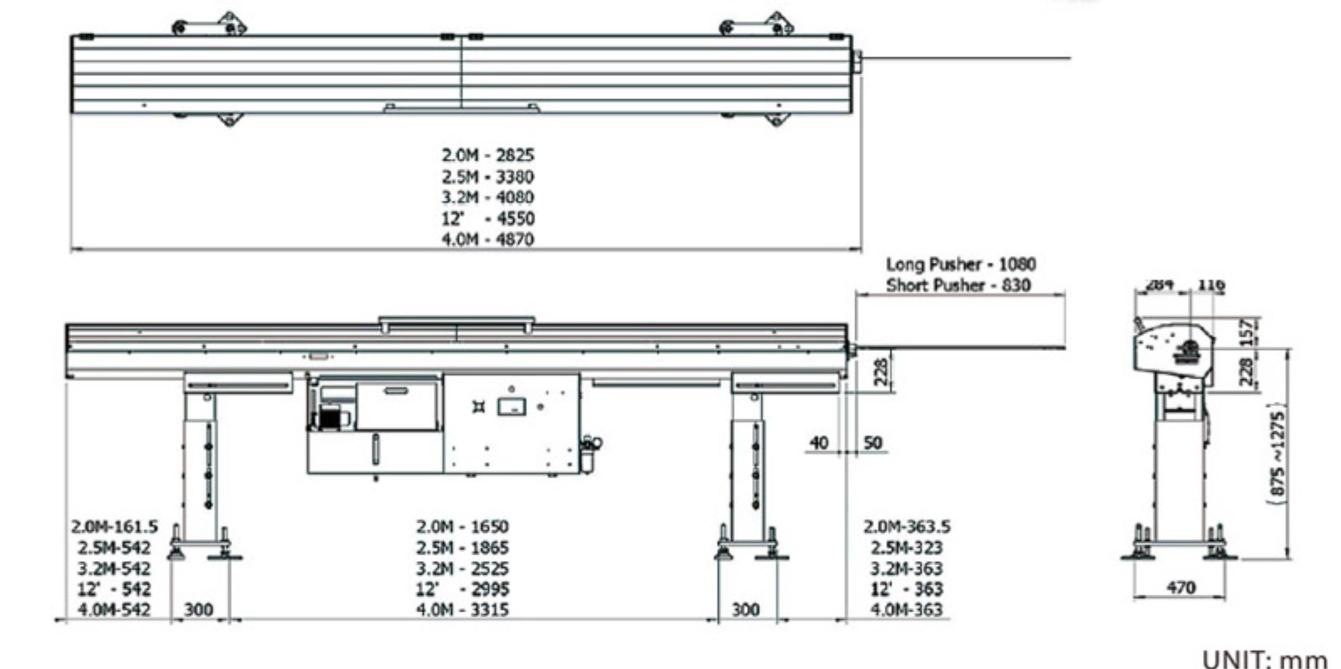

UNIT: mm
| ITEM NO. | 51101108-1 | 51101109-1 |
|---|---|---|
| Bar diameter | (ø0.7) ø1 - ø12 (ø0.7, may vary depending on applications) |
|
| Magazine capacity | 20 pcs / 14pcs | |
| Model | 2.5M | 12′ |
| Overall length | 3383 | 4550 |
| Overall width | 432 mm | |
| Max. bar length | 2560 | 3736 |
| Weight | 355 kgs | 410 kgs |
| Air pressure | 5~7 kgs/cm2 | |
| Power source | 220V 3P (Varying power supply is availble depending on applications) |
|
| Options | Integrated HMI remote controller Z-axis Retraction System |
|
