2-WAY / 3-WAY QUICK CHANGE TOOL POSTS - ITALIAN STYLE
51101001, 51101002, 51101003, 51101004, 51101103, 51101104
Description
Specification

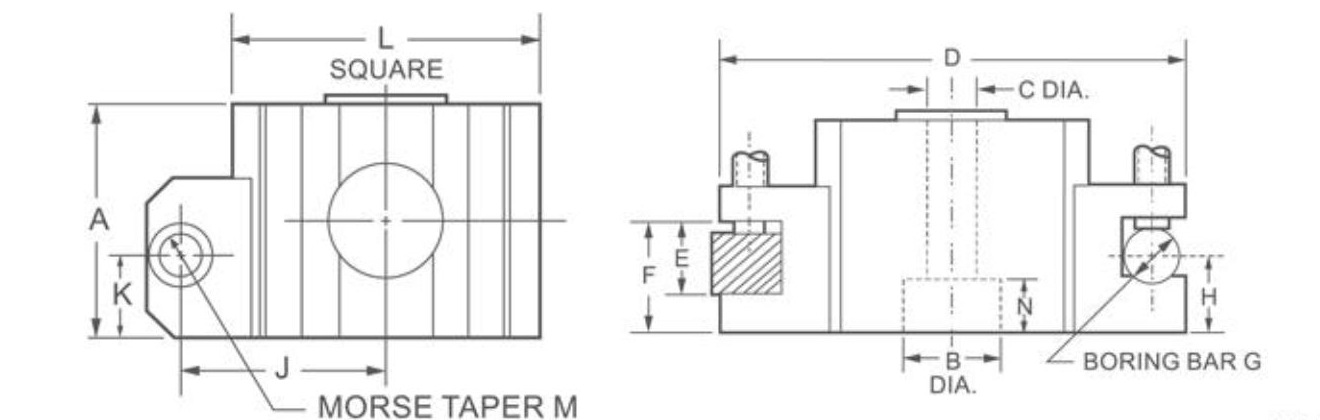

UNIT:mm
| ITEM NO. | LATHE CAPACITY |
A | B | C | D | E | F | G | H | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101001 | 4-1/2"~5" | 66 | 24 | 17 | 118 | 20 | 32 | 13 | 21 | 52 | 22 | 76 | 2 | 24 |
| 51101002 | 5"~8" | 68 | 24 | 17 | 130 | 20 | 32 | 15 | 22 | 62 | 22 | 85 | 2 | 24 |
| 51101003 | 8"~11-1/2" | 83 | 32 | 21 | 152 | 27 | 42 | 17 | 26 | 65 | 30 | 100 | 3 | 25 |
| 51101004 | 11-1/2"~15" | 92 | 32 | 24 | 176 | 32 | 50 | 19 | 29 | 80 | 34 | 120 | 3 | 25 |
| 51101103 | 20"~30" | 100 | 40 | 27 | 218 | 38 | 60 | 25 | 32 | 98 | 38 | 140 | 4 | 35 |
| 51101104 | 25"~40" | 130 | 40 | 27 | 260 | 46 | 68 | 32 | 41 | X | X | 160 | X | 35 |
