HIGH SPEED & MEDIUM DUTY LIVE CENTERS
51100130, 51100131, 51100132, 51100133
Description
Specification
UNIT: mm

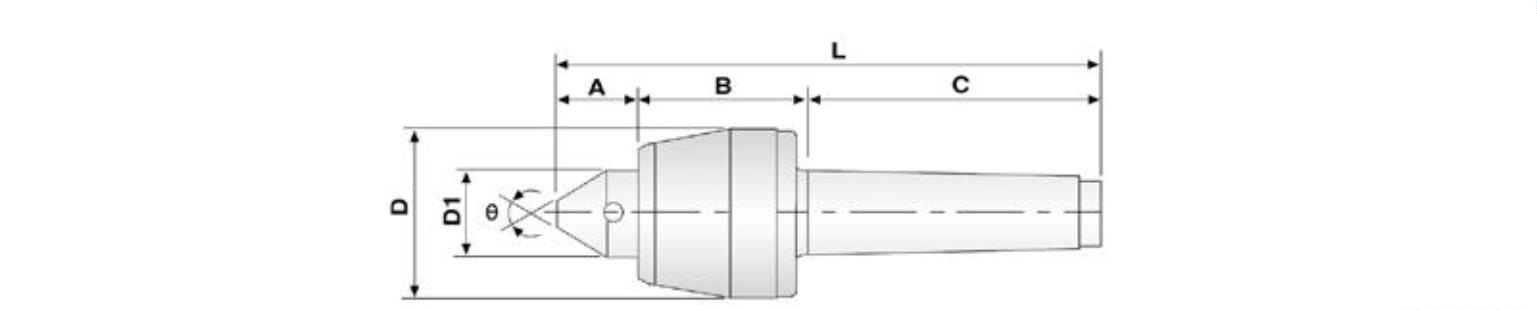

| ITEM NO. | SHANK | A | B | C | D | D1 | d | L | d1 | STATIC ACCURACY |
MAX. R.P.M. |
θ | G.W. | L x W x H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51100130 | MT 3 | 28 | 55 | 86 | 53 | 30 | - | 169 | - | 0.005 | 5000 R.P.M. | 60° | 1.50 kgs | 235 x 130 x 100 |
| 51100131 | MT 4 | 30 | 62 | 108 | 63 | 32 | - | 196 | - | 0.005 | 4500 R.P.M. | 60° | 2.18 kgs | 235 x 130 x 100 |
| 51100132 | MT 4 | 30 | 62 | 108 | 63 | 32 | - | 196 | - | 0.005 | 4500 R.P.M. | 60° | 2.70 kgs | 238 x 132 x 80 |
| 51100133 | MT 5 | 34 | 71 | 136 | 83 | 40 | - | 237 | - | 0.005 | 3500 R.P.M. | 60° | 5.00 kgs | 280 x 150 x 106 |
