HIGH SPEED & HEAVY DUTY LIVE CENTERS

HIGH SPEED & HEAVY DUTY LIVE CENTERS

HIGH SPEED & HEAVY DUTY LIVE CENTERS

51100115, 51100116, 51100117, 51100118, 51100119, 51100120, 51100121, 51100122

Description

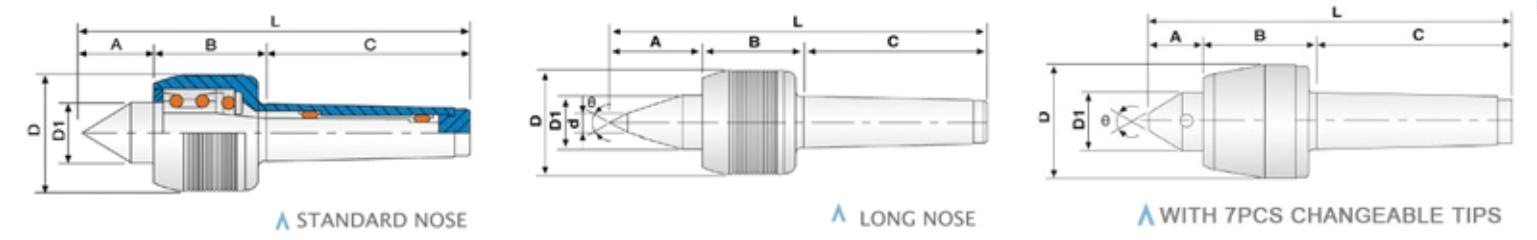

Live center dimensions - standard nose, long nose, with 7pcs changeable tips

Specification

UNIT: mm

ITEM NO. SHANK A B C D D1 d L d1 STATIC
ACCURACY		 MAX.
R.P.M.		 θ G.W. L x W x H
51100115 MT 3 38 50 86 53 30 - 174 12 0.003 6000 R.P.M. 60° 1.26 kgs 240 x 80 x 65
51100116 MT 4 45 60 108 68 32 - 213 12 0.003 5500 R.P.M. 60° 2.38 kgs 257 x 100 x 90
51100117 MT 5 52 70 136 87 40 - 258 18 0.003 4000 R.P.M. 60° 4.82 kgs 320 x 118 x 115
51100118 MT 3 52 50 86 53 30 10 188 12 0.003 6000 R.P.M. 60° 1.28 kgs 240 x 80 x 65
51100119 MT 4 55 60 108 68 32 12 223 12 0.003 5500 R.P.M. 60° 2.40 kgs 257 x 100 x 90
51100120 MT 5 67 70 136 87 40 14 273 18 0.003 4000 R.P.M. 60° 4.90 kgs 320 x 118 x 115
51100121 MT 4 29 64 108 68 32 - 201 - 0.005 5500 R.P.M. 30° 2.96 kgs 238 x 132 x 80
51100122 MT 5 37 70 136 87 40 - 243 - 0.005 4000 R.P.M. 30° 5.40 kgs 280 x 150 x 106
