Spiral-Spannreibahlen mit geradem Schaft / JIS
55100692 ~ 55100720
Beschreibung
Spezifikation

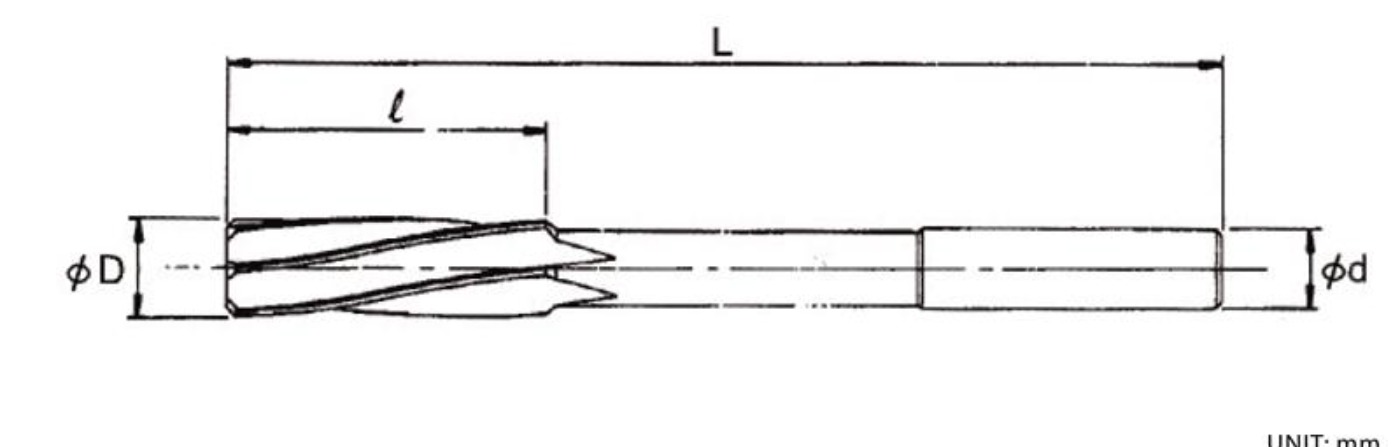

EINHEIT: mm
| ARTIKEL-NR. | øD DURCHMESSER | Ød DURCHMESSER | ℓ KLINGENLÄNGE | L GESAMTLÄNGE | ANZAHL DER KLINGEN |
|---|---|---|---|---|---|
| 55100692 | 2.0 | 2.0 | 11 | 49 | 4 |
| 55100693 | 2,5 | 2,5 | 14 | 57 | 4 |
| 55100694 | 3.0 | 3.0 | 15 | 61 | 4 |
| 55100695 | 3,5 | 3,5 | 15 | 61 | 4 |
| 55100696 | 4.0 | 4.0 | 19 | 75 | 6 |
| 55100697 | 4,5 | 4,5 | 21 | 80 | 6 |
| 55100698 | 5.0 | 5.0 | 23 | 86 | 6 |
| 55100699 | 5,5 | 5.0 | 26 | 93 | 6 |
| 55100700 | 6.0 | 6.0 | 26 | 93 | 6 |
| 55100701 | 6,5 | 6.0 | 26 | 93 | 6 |
| 55100702 | 7.0 | 6.0 | 31 | 109 | 6 |
| 55100703 | 7,5 | 6.0 | 31 | 109 | 6 |
| 55100704 | 8.0 | 6.0 | 33 | 117 | 6 |
| 55100705 | 8,5 | 6.0 | 33 | 117 | 6 |
| 55100706 | 9.0 | 8.0 | 36 | 125 | 6 |
| 55100707 | 9,5 | 8.0 | 36 | 125 | 6 |
| 55100708 | 10.0 | 10.0 | 38 | 133 | 6 |
| 55100709 | 10,5 | 10.0 | 38 | 133 | 6 |
| 55100710 | 11.0 | 10,5 | 41 | 142 | 6 |
| 55100711 | 11,5 | 11.0 | 41 | 142 | 6 |
| 55100712 | 12.0 | 11.0 | 44 | 151 | 6 |
| 55100713 | 13.0 | 12.0 | 44 | 151 | 6 |
| 55100714 | 14.0 | 13.0 | 47 | 160 | 6 |
| 55100715 | 15.0 | 14.0 | 50 | 162 | 6 |
| 55100716 | 16.0 | 14.0 | 52 | 170 | 6 |
| 55100717 | 17.0 | 16.0 | 54 | 175 | 6 |
| 55100718 | 18.0 | 16.0 | 56 | 182 | 6 |
| 55100719 | 19.0 | 18.0 | 58 | 189 | 6 |
| 55100720 | 20.0 | 18.0 | 60 | 195 | 6 |
