Außendrehwerkzeug (SVPC 117,5°)
55101090, 55101091, 55101092, 55101093, 55101094
Beschreibung
Spezifikation

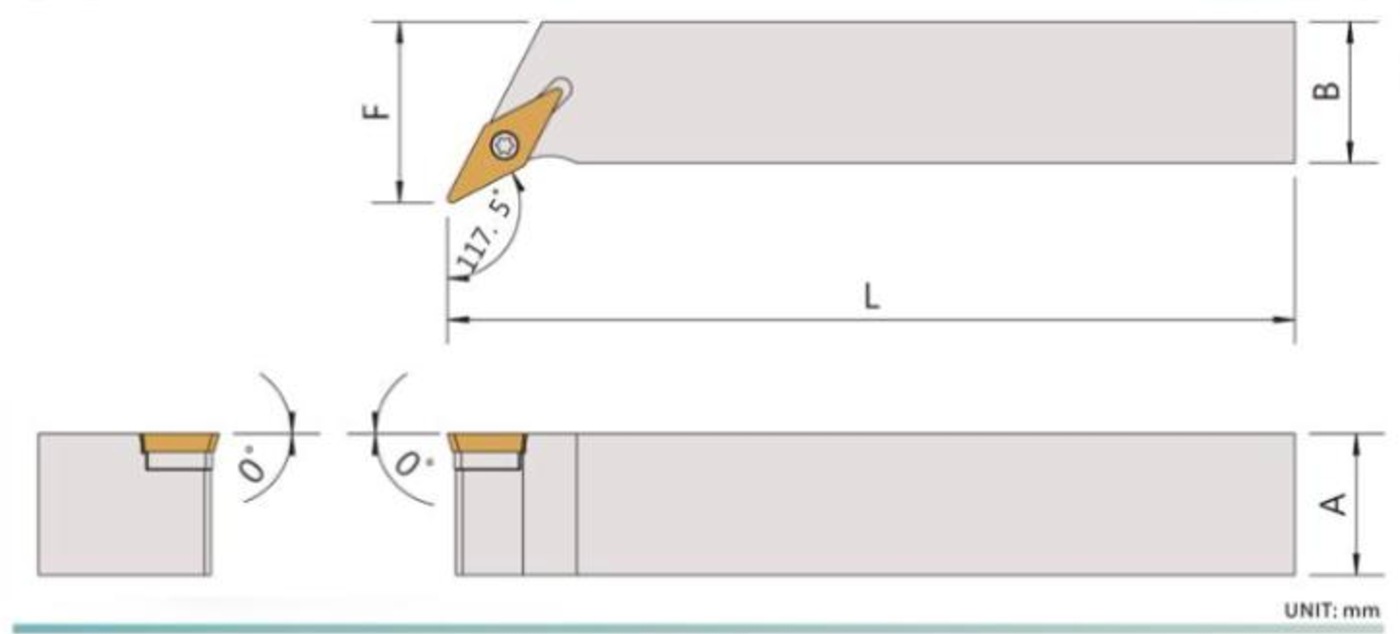

EINHEIT: mm
| ARTIKEL-NR. | MODELL | EINFÜGEN | ABMESSUNGEN | TEILE | SCHLÜSSEL | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rechts / Links | A | B | L | F | |||||||
| 55101090 R/L | SVPCR/L-1010H11 | VCMT1103 | 10 | 10 | 100 | 14,5 | - | - | CS25060 | FT-7 | - |
| 55101091 R/L | SVPCR/L-1212H11 | VCMT1103 | 12 | 12 | 100 | 16,5 | - | - | CS25060 | FT-7 | - |
| 55101092 R/L | SVPCR/L-1616H11 | VCMT1103 | 16 | 16 | 100 | 20,5 | - | - | CS25060 | FT-7 | - |
| 55101093 R/L | SVPCR/L-2020K16 | VCMT1604 | 20 | 20 | 125 | 25 | SMV-321 | SN535 | CS35115 | FT-15 | LW035 |
| 55101094 R/L | SVPCR/L-2525M16 | VCMT1604 | 25 | 25 | 150 | 32 | SMV-321 | SN535 | CS35115 | FT-15 | LW035 |
