Außendrehwerkzeug (SDQC 107,5°)
55101028, 55101029, 55101030, 55101031, 55101032
Beschreibung
Spezifikation

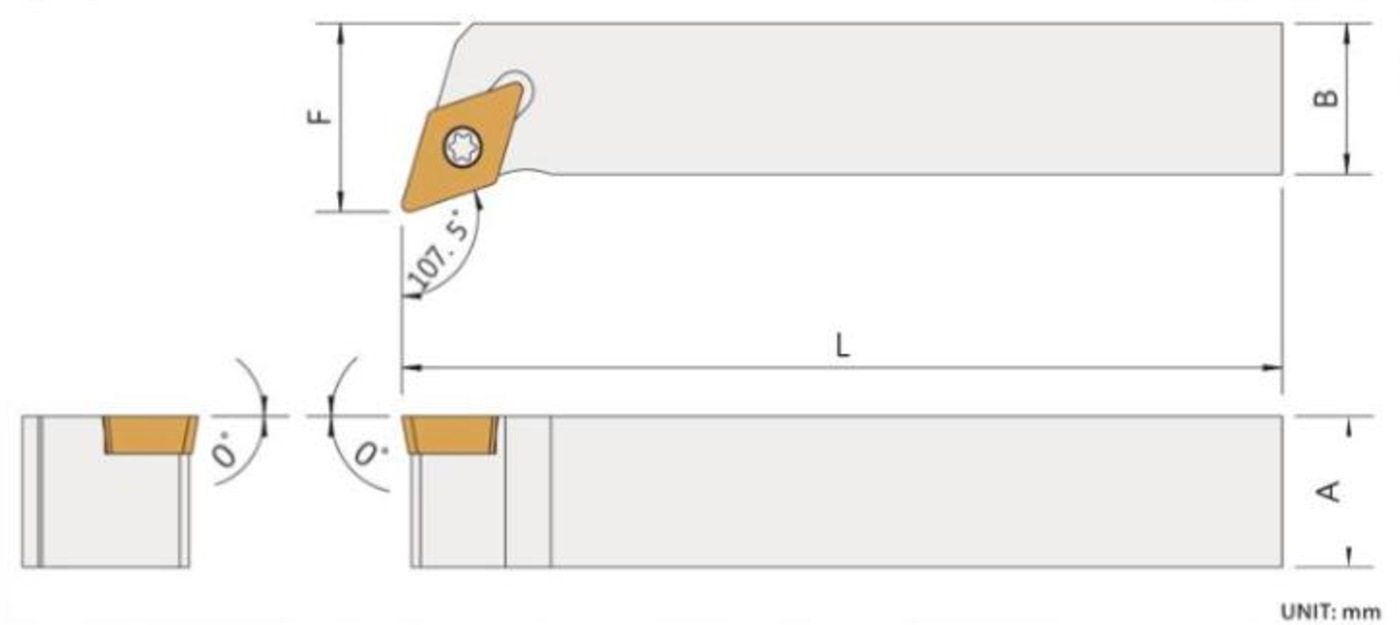

EINHEIT: mm
| ARTIKEL-NR. | MODELL | EINFÜGEN | ABMESSUNGEN | TEILE | SCHLÜSSEL | |||
|---|---|---|---|---|---|---|---|---|
| Rechts / Links | A | B | L | F | ||||
| 55101028 R/L | SDQCR/L-1010H07 | DCMT0702 | 10 | 10 | 100 | 12 | CS25060 | FT-7 |
| 55101029 R/L | SDQCR/L-1212H11 | DCMT11T3 | 12 | 12 | 100 | 16 | CS35095 | FT-15 |
| 55101030 R/L | SDQCR/L-1616H11 | DCMT11T3 | 16 | 16 | 100 | 20 | CS35095 | FT-15 |
| 55101031 R/L | SDQCR/L-2020K11 | DCMT11T3 | 20 | 20 | 125 | 25 | CS35095 | FT-15 |
| 55101032 R/L | SDQCR/L-2525M11 | DCMT11T3 | 25 | 25 | 150 | 32 | CS35095 | FT-15 |
