Außendrehwerkzeug (MDNN 63°)
55100791, 55100792, 55100793, 55100794, 55100795, 55100796, 55100797, 55100798
Beschreibung
Spezifikation

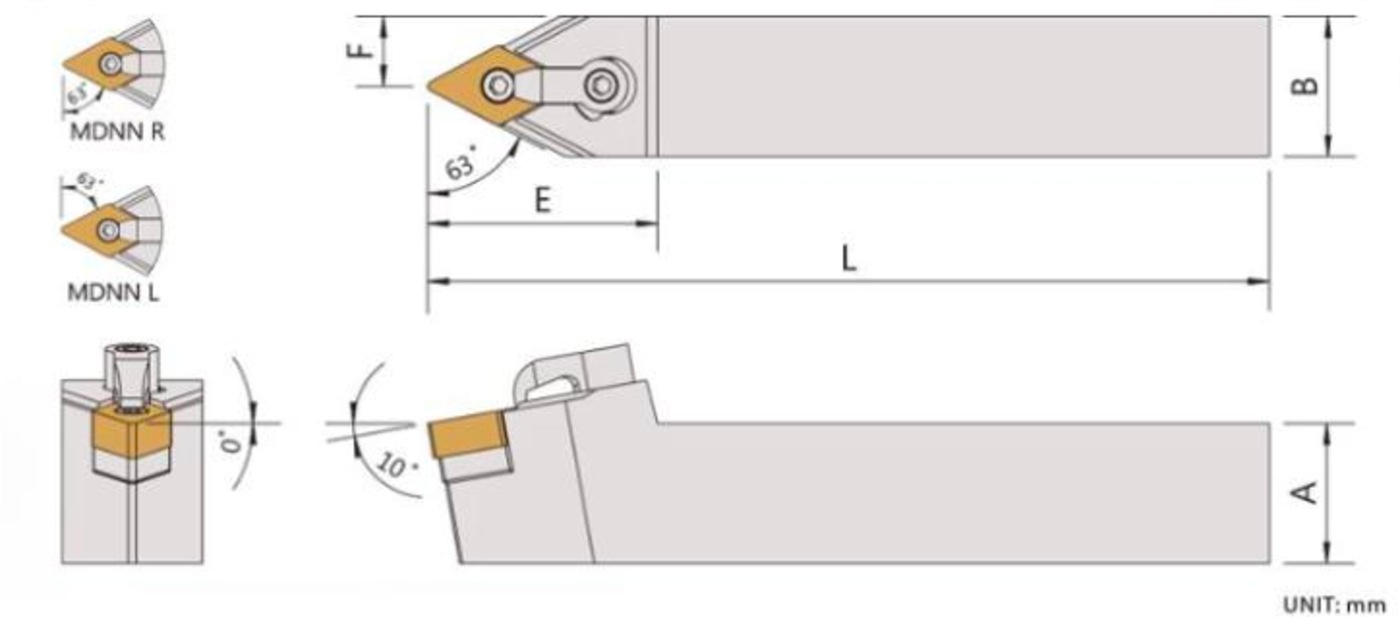

EINHEIT: mm
| ARTIKEL-NR. | MODELL | EINFÜGEN | ABMESSUNGEN | TEILE | SCHLÜSSEL | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rechts / Links | A | B | L | E | F | |||||||
| 55100791 R/L | MDNNR/L-2020K1504 | DNMG1504 | 20 | 20 | 125 | 41 | 10 | SMD-463 | LCS-619 | CP50-24 | CS7-6030 | LW030 |
| 55100792 R/L | MDNNR/L-2525M1504 | DNMG1504 | 25 | 25 | 150 | 41 | 12,5 | SMD-463 | LCS-619 | CP50-24 | CS7-6030 | LW030 |
| 55100793 R/L | MDNNR/L-3225P1504 | DNMG1504 | 32 | 25 | 170 | 42 | 12,5 | SMD-463 | LCS-619 | CP50-24 | CS7-6030 | LW030 |
| 55100794 R/L | MDNNR/L-3232P1504 | DNMG1504 | 32 | 32 | 170 | 43 | 16 | SMD-463 | LCS-619 | CP50-24 | CS7-6030 | LW030 |
| 55100795 R/L | MDNNR/L-2020K1506 | DNMG1506 | 20 | 20 | 125 | 41 | 10 | SMD-443 | LCS-619 | CP50-24 | CS7-6030 | LW030 |
| 55100796 R/L | MDNNR/L-2525M1506 | DNMG1506 | 25 | 25 | 150 | 41 | 12,5 | SMD-443 | LCS-619 | CP50-24 | CS7-6030 | LW030 |
| 55100797 R/L | MDNNR/L-3225P1506 | DNMG1506 | 32 | 25 | 170 | 42 | 12,5 | SMD-443 | LCS-619 | CP50-24 | CS7-6030 | LW030 |
| 55100798 R/L | MDNNR/L-3232P1506 | DNMG1506 | 32 | 32 | 170 | 42 | 16 | SMD-443 | LCS-619 | CP50-24 | CS7-6030 | LW030 |
